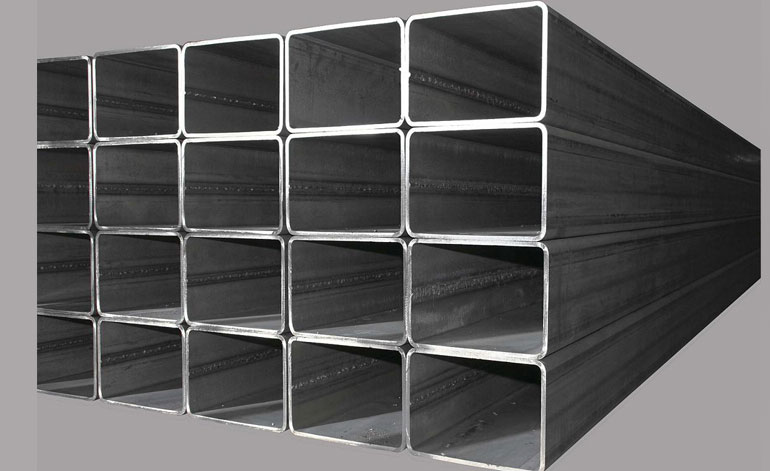

Square Pipes

Size Thickness in mm Weight (Approx)
15*15 1.2mm 0
15*15 1.4mm 0
15*15 1.6mm 0
15*15 1.8mm 0
20*20 1.2mm 4.4
20*20 1.4mm 0
20*20 1.6mm 5.6
20*20 1.8mm 0
20*20 2.0mm 7
25*25 1.2mm 5.55
25*25 1.4mm 0
25*25 1.6mm 7.2
25*25 2.0mm 8.16
25*25 2.6mm 10.14
25*25 3.2mm 11.88
32*32 1.2mm 0
32*32 1.4mm 0
32*32 1.6mm 9.6
32*32 2.0mm 10.8
32*32 2.6mm 13.56
32*32 3.2mm 16.14
38*38 1.2mm 8.6
38*38 1.4mm 0
38*38 1.6mm 11.6
38*38 2.0mm 14
38*38 2.6mm 16.5
38*38 3.2mm 19.74
38*38 4.0mm 23.7
40*40 1.2mm 0
40*40 1.4mm 0
40*40 1.6mm 0
40*40 2.6mm 17.52
40*40 2.9mm 19.26
40*40 3.2mm 20.94
40*40 4.0mm 25.2
50*50 1.2mm 11.25
50*50 1.4mm 0
50*50 1.6mm 15
50*50 2.0mm 19
50*50 2.6mm 22.14
50*50 2.9mm 24.42
50*50 3.6mm 29.58
50*50 4.5mm 35.7
60*60 1.2mm 0
60*60 1.4mm 0
60*60 1.6mm 18
60*60 2.0mm 23
60*60 2.6mm 27.3
60*60 2.9mm 30.18
Size Thickness in mm Weight (Approx)
60*60 3.2mm 33
60*60 4.0mm 40.26
60*60 4.8mm 47.1
72*72 1.6mm 21
72*72 2.0mm 25
72*72 2.6mm 34
72*72 3.2mm 40.26
72*72 4.0mm 49.32
72*72 4.8mm 57.96
80*80 1.6mm 0
80*80 2.0mm 30
80*80 2.6mm 38
80*80 3.2mm 45.06
80*80 4.0mm 55.32
80*80 4.8mm 65.22
91.5*91.5 3.0mm 50
91.5*91.5 3.6mm 58.02
91.5*91.5 4.5mm 71.28
91.5*91.5 5.4mm 84.06
100*100 2.0mm 0
100*100 3.0mm 55
100*100 4.0mm 70.38
100*100 5.0mm 86.46
100*100 6.0mm 101.88
113.5*113.5 4.8mm 95.52
113.5*113.5 5.4mm 106.44
132*132 1.6mm 0
132*132 2mm 0
132*132 4.8mm 100.26
132*132 5.4mm 125.28
150*150 4.0mm 108.06
150*150 5.0mm 133.56
150*150 6.0mm 158.4
150*150 7.0mm 182.64
150*150 8.0mm 266.28
180*180 4.0mm 130.68
180*180 5.0mm 161.82
180*180 6.0mm 192.3
180*180 7.0mm 198.18
180*180 8.0mm 251.46
220*220 4.0mm 159.66
220*220 5.0mm 199.5
220*220 6.0mm 237.54
220*220 7.0mm 274.98
220*220 8.0mm 311.76
250*250 4.0mm 183.42
250*250 5.0mm 227.76
250*250 6.0mm 271.44
250*250 7.0mm 314.52
250*250 8.0mm 357

Conversion Table

Guage mm.
1 8.97
2 7.99
3 7.12
4 6.35
5 5.65
6 5.03
7 4.48
8 4.00
9 3.55
10 3.15
11 2.80
12 2.50
13 2.24
14 2.00
15 1.80
16 1.60
17 1.40
Guage mm.
18 1.25
19 1.12
20 1.00
21 0.90
22 0.80
23 0.70
24 0.63
25 0.56
26 0.50
27 0.45
28 0.40
29 0.35
30 0.31
31 0.28
32 0.25
33 0.22
34 0.20
35 0.18
1 Meter 3.2809 Feet
1 Feet 0.0348 Meter
1 Feet 12 inch
1 Feet 305 mm
1 Inch 25.4 mm
1 cm 10 mm
1 mm 0.03937 inch
