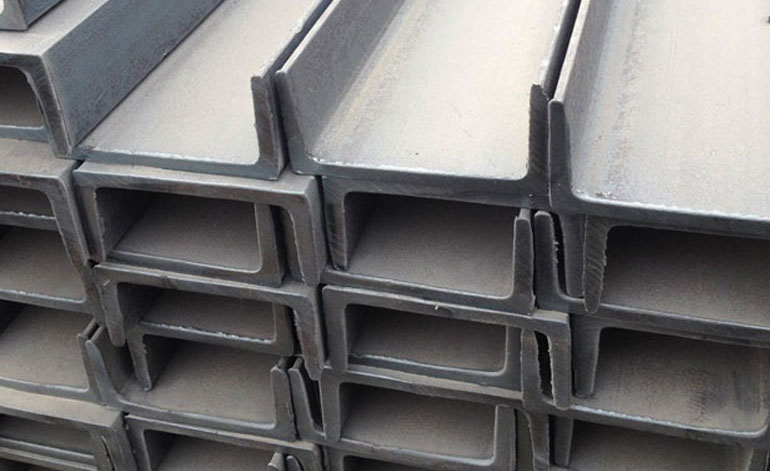

M. S. Channels

Size in mm. Weight in Kgs
Per Mtr
Weight in Kgs
Per 18 ft
70x35 Std 4.2 23.1
75x40 Std 7.2 39.6
75x40 Med 6.5 35.75
75x40 L 5.7 31.35
75x40 XL 4.92 27.06
100x50 Std 9.8 53.9
100x50 Med 8.7 47.85
100x50 L 7.8 42.9
Size in mm. Weight in Kgs
Per Mtr
Weight in Kgs
Per 18 ft
125x65 Std 13.4 73.7
150x75 Std 17 93.5
175x75 Std 20.5 112.75
200x75 Std 23 126.5
250x80 Std 30.60 168.3
300x90 Std 36.3 199.65
350x100 Std 42.7 234.85
400x100 Std 50.1 275.55

Conversion Table

Guage mm.
1 8.97
2 7.99
3 7.12
4 6.35
5 5.65
6 5.03
7 4.48
8 4.00
9 3.55
10 3.15
11 2.80
12 2.50
13 2.24
14 2.00
15 1.80
16 1.60
17 1.40
Guage mm.
18 1.25
19 1.12
20 1.00
21 0.90
22 0.80
23 0.70
24 0.63
25 0.56
26 0.50
27 0.45
28 0.40
29 0.35
30 0.31
31 0.28
32 0.25
33 0.22
34 0.20
35 0.18
1 Meter 3.2809 Feet
1 Feet 0.0348 Meter
1 Feet 12 inch
1 Feet 305 mm
1 Inch 25.4 mm
1 cm 10 mm
1 mm 0.03937 inch
