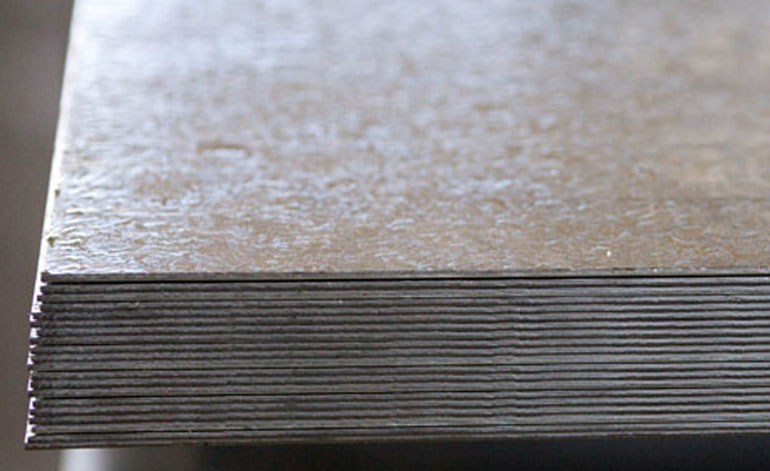

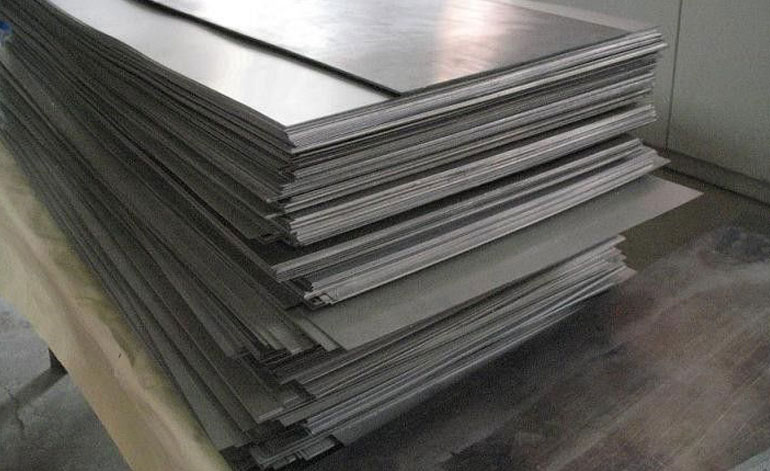

M. S. Plate

Size in mm. Weight in Kgs
Per Sq. Mtr
4 mm 31.4
5 mm 39.25
6 mm 47.1
8 mm 62.8
10 mm 78.5
12 mm 94.2
16 mm 125.6
20 mm 157
25 mm 196.2
32 mm 251.2
36 mm 282.6
40 mm 314

Chequred plate

Size in mm. Weight in Kgs
Per Sq. Mtr
3 m 26.55
4 mm 34.4
5 mm 42.25
6 mm 50.1
8 mm 65.8

Conversion Table

Guage mm.
1 8.97
2 7.99
3 7.12
4 6.35
5 5.65
6 5.03
7 4.48
8 4.00
9 3.55
10 3.15
11 2.80
12 2.50
13 2.24
14 2.00
15 1.80
16 1.60
17 1.40
Guage mm.
18 1.25
19 1.12
20 1.00
21 0.90
22 0.80
23 0.70
24 0.63
25 0.56
26 0.50
27 0.45
28 0.40
29 0.35
30 0.31
31 0.28
32 0.25
33 0.22
34 0.20
35 0.18
1 Meter 3.2809 Feet
1 Feet 0.0348 Meter
1 Feet 12 inch
1 Feet 305 mm
1 Inch 25.4 mm
1 cm 10 mm
1 mm 0.03937 inch
